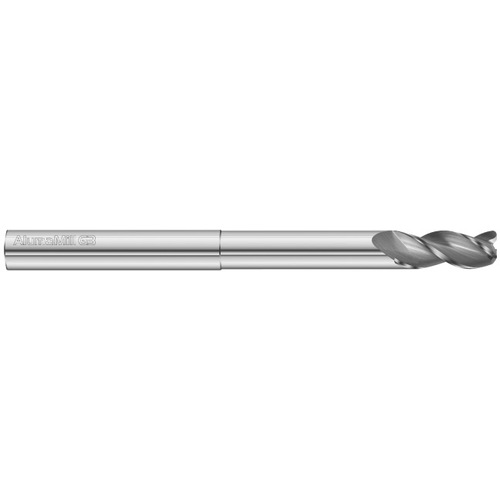

Corner Radius End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Uncoated ; Series 3833
SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 0.03″ RE ; 3 FL ; 2-1/4″ LBS ; Carbide ; Uncoated ; Series 3833
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Usable Length (LU) | 2-1/4″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 4″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Long Reach |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 37.5 Degrees | Series/List # | 3833 |
| Shank Type | Round |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
0.31
