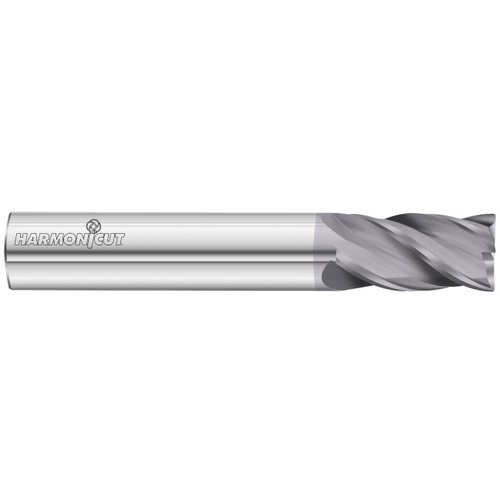

Corner Radius End Mill; 7/16″ Dia. × 1″ LOC × 7/16″ Shank Dia. × 2-3/4″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3400
| Cutting Diameter (DC) | 7/16″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1″ | Corner Radius (RE) | 0.02″ |
| Overall Length (OAL) | 2-3/4″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | FC18 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.4375″ |
| Flute Helix Angle (FHA) | Variable | Series/List # | 3400 |
Product Features
| Remarks | |
Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.2
