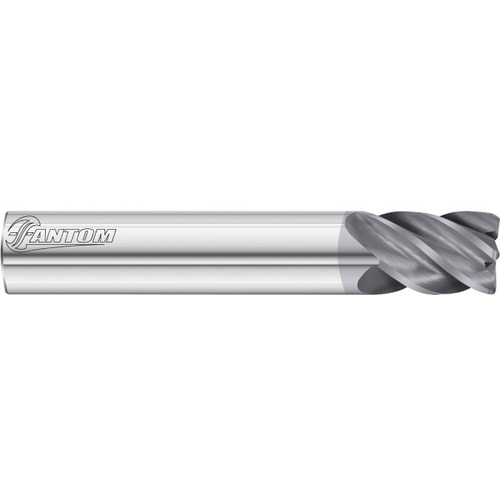

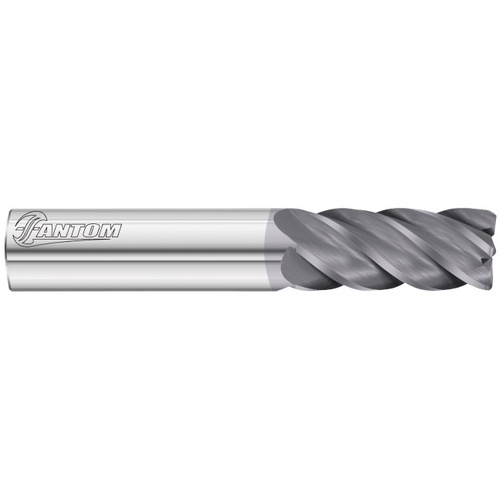

3410STBFC18 R.0300.500 SE

SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 0.03″ RE ; 5 FL ; Carbide ; FC18 ; Series 3410

Item # FT8534164

Brand: Fullerton Tool

MFG #: 34164

Legacy Part #: FT8534164

TradeName: 3410 Fantom End Mill

Quantity Available

Cutting Diameter (DC)

1/2″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

1/2″

End Shape

Corner Radius

Depth of Cut Maximum (APMX)

5/8″

Corner Radius (RE)

0.03″

Overall Length (OAL)

3″

Tool Type

Center Cut|Single-End

Cutting Edge Material

Carbide

Length Group

Short|Stub

Coating

FC18

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.5″

Flute Helix Angle (FHA)

40 Degrees

Series/List #

3410

Product Features

Remarks

‎

Square and Corner Radius End

5 Individually Designed Flutes

Eccentric Relief

Variable Index

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.34
