12J1D016019TRR00

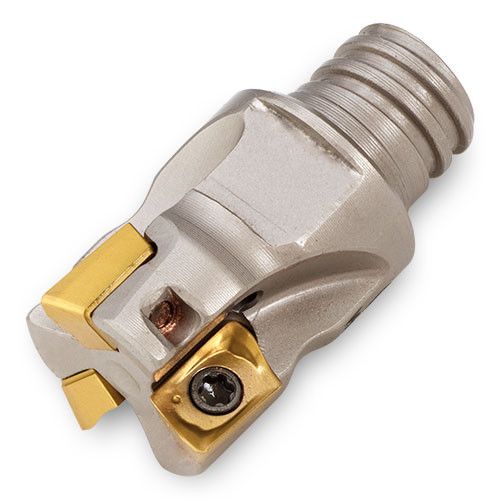

Indexable End Mill; 16 mm Dia. × 5.7 mm LOC ; 90 Degrees
| Cutting Diameter (DC/DCX) | 16 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 16 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5.7 mm | Measurement Type | Metric |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Hub Diameter (DHUB) | 15.45 mm |
| Functional Length (LF) | 19 mm | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 32-63 Ra surface finishes when engaging the integrated wiper (WEP) Insert corners: SC, 0.2, 0.4, 0.8, 1.6mm R & Hi-Feed | Country of Origin | Germany |
Shipping Info
Package Weight
0.055
