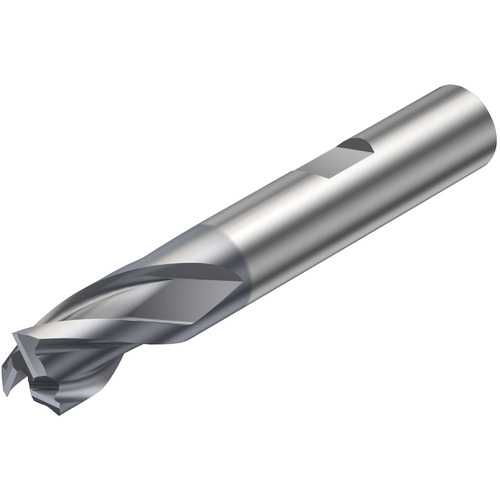

1P221-0180-XB 1630 COROMILL PLURA
SQ End Mill; 1.8 mm Dia. × 3 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 3 FL ; 6.6 mm LBS ; Carbide ; AlCrN
| Cutting Diameter (DC) | 1.8 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 3 mm | Usable Length (LU) | 6.6 mm |
| Overall Length (OAL) | 50 mm | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlCrN | Length Group | 1.7D |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|30 Degrees | Decimal Equivalent | 0.0709″ |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.057
