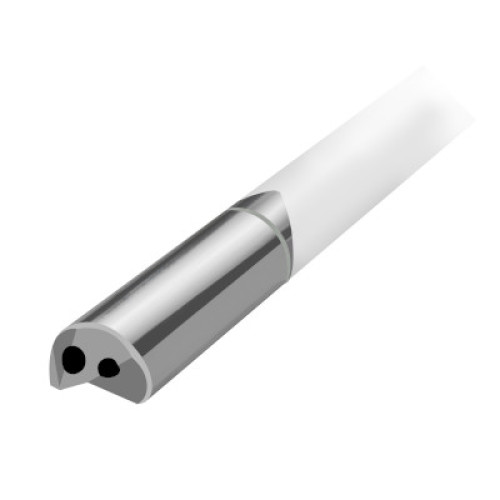

TBT USA Single Flute Gundrill - Carbide Tipped - 0.9844 x 22
| Drill Bit Size / Cutting Diameter (DC) | 25mm | Shank Type | Steel |
| Decimal Equivalent | 0.9844 | Cutting Edge Material | Carbide |
| Length Group | 19 | Tool Type | Gundrill - Carbide Tipped |
| Coating | uncoated | Grade | K10 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Usable Length (LU) | 18.9756 |
| Connection Diameter Machine Side (DCONMS) | 1.25 × 2.75 | Length Chip Flute (LCF) | 19.96 |
| Head Length (LH) | 2.165 | Overall Length (OAL) | 22 |
| Coolant Supply Property (CSP) | through coolant | Flute Count (NOF) | 1 |
| Point Angle (SIG) | 130deg | Cutting Direction (HAND) | N/A |
| Functional Length (LF) | N/A |
Product Features
| Country of Origin | Germany |
