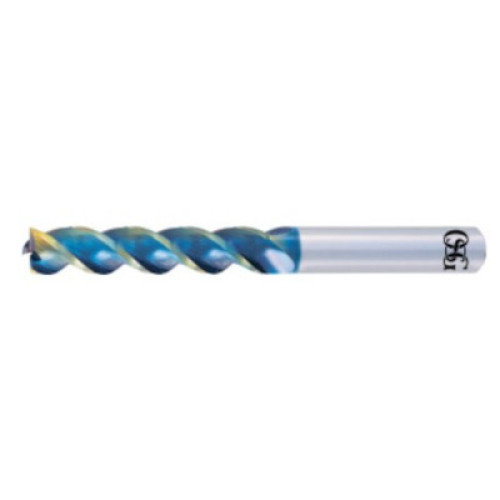

OSG Square & Corner Radius End Mills: 1/2" Diameter, 3 Flute, DLC Coated Carbide End Mill
| Cutting Diameter (DC) | 1/2″ | Applicable Material | Non-Ferrous Materials |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Tool Type | End Mill |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Length Group | Long |
| Overall Length (OAL) | 5″ | Decimal Equivalent | 0.5 |
| Cutting Edge Material | Solid Carbide | Corner Radius (RE) / Chamfer Width (CHW) | N/A |
| Coating | DLC | Cutting Direction (HAND) | RH |
| Flute Count (NOF) | 3 | Single / Double End | Single |
| Flute Helix Angle (FHA) | 41deg | Center Cutting | Yes |
| Shank Type | Straight | Cutting Diameter Tolerance | +0/-0.0008 |
| End Shape | Square End |
Product Features
| Remarks | *Large Core & New Flute Form- High Rigidity and Excellent Chip Evacuation *Center Cutting Edge- Ideal for Plunging *DLC Super Hard Coating- For Superior Surface Accuracy *Unique Cutting Edge- Achieves Both Rigidity and Sharpness |
