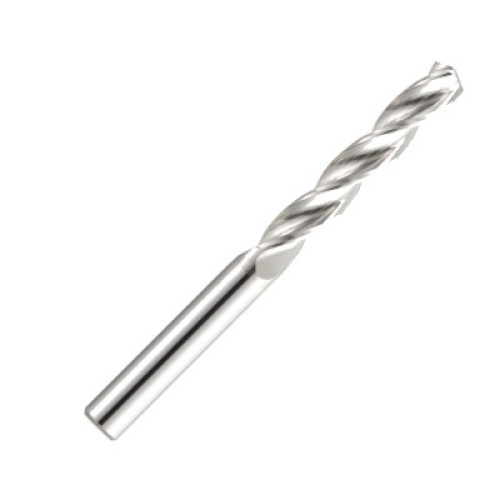

GARR Solid Carbide Drill: Series 1180 #16 (.1770″), 5xD, 140 Deg Point, 3 Flute, Alumastar Coating
| Drill Bit Size / Cutting Diameter (DC) | #16 | Functional Length (LF) | 1.125″ |
| Decimal Equivalent | 0.1770″ | Tool Type | Drill |
| Length Group | 5xD | Usable Length (LU) | 1.125″ |
| Coating | Alumastar Coating | Length Chip Flute (LCF) | N/A |
| Applicable Material | For Aluminum and other soft materials <40Rc | Overall Length (OAL) | 2.75″ |
| Connection Diameter Machine Side (DCONMS) | 0.1770″ | Flute Count (NOF) | 3 |
| Coolant Supply Property (CSP) | N/A | Cutting Direction (HAND) | N/A |
| Point Angle (SIG) | 140deg |
Product Features
| Remarks | *High Performance solid submicron grain carbide drill *No spot drilling required *Unique point geometry and coating for higher speeds and feeds |
Shipping Info
Package Weight
0.03
