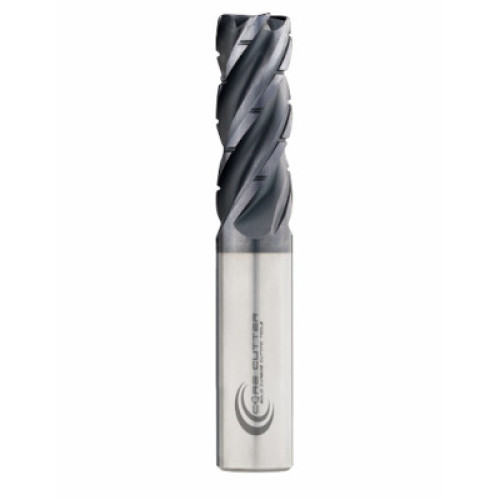

CORE CUTTER Square and Corner Radius End Mills: 1/4" Cutting Diameter, 2-1/2" Overall Length, Series VST4-SR-0250-R030-CB Latuma Coating, 4 Flutes
| Cutting Diameter (DC) | 0.25″ | Shank Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.25″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 0.5″ | Applicable Material | Steel; Stainless Steel; Hi-Temp Alloys; Cast Iron |
| Overall Length (OAL) | 2.5″ | Tool Type | End Mill |
| Cutting Edge Material | Solid Carbide | Decimal Equivalent | 0.25 |
| Coating | Latuma | Series/List # | VST4 |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.03 |
