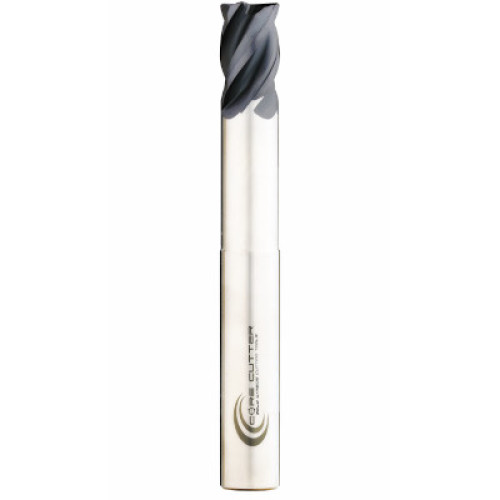

CORE CUTTER Square and Corner Radius End Mills: 1" Cutting Diameter, 6" Overall Length, Series VST4-RN-R-1000-R030 Latuma Coating, 4 Flutes
| Cutting Diameter (DC) | 1″ | Shank Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1.5″ | Applicable Material | Steel; Stainless Steel; Hi-Temp Alloys; Cast Iron |
| Overall Length (OAL) | 6″ | Tool Type | End Mill |
| Cutting Edge Material | Solid Carbide | Decimal Equivalent | 1 |
| Coating | Latuma | Series/List # | VST4-RN |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.03 |
