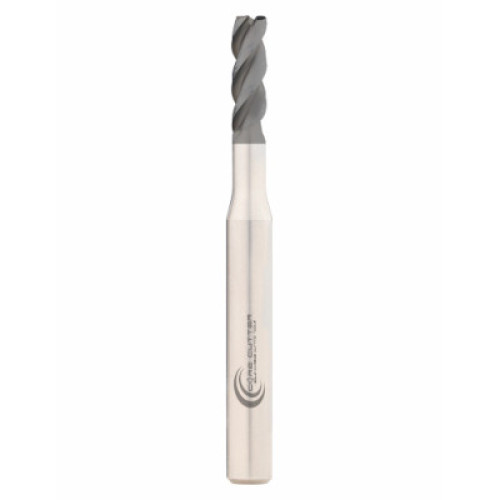

CORE CUTTER Square and Corner Radius End Mills: 7/64" Cutting Diameter, 2-1/2" Overall Length, Series QTR3-RN-0109-5XD-R010 Alcrona Pro Coating, 3 Flutes
| Cutting Diameter (DC) | 7/64″ | Shank Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 0.328″ | Applicable Material | Ferrous and Non-Ferrous Materials |
| Overall Length (OAL) | 2-1/2″ | Tool Type | End Mill |
| Cutting Edge Material | Solid Carbide | Decimal Equivalent | 0.1094 |
| Coating | Alcrona Pro | Series/List # | QTR3-RN |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | 0.01 |
