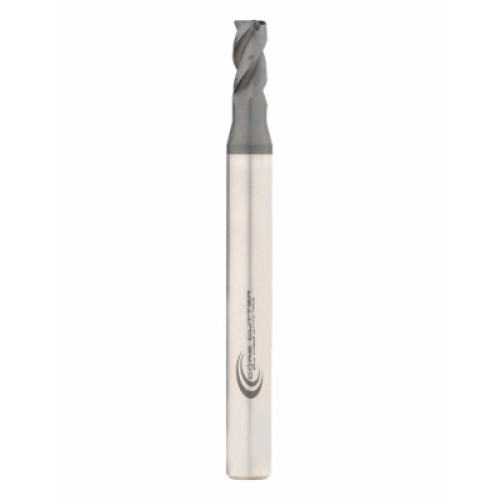

CORE CUTTER Square and Corner Radius End Mills: 5/64" Cutting Diameter, 2-1/2" Overall Length, Series QTR3-0078-4XD-SQ Alcrona Pro Coating, 3 Flutes
| Cutting Diameter (DC) | 5/64″ | Shank Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Square End |
| Depth of Cut Maximum (APMX) | 0.313″ | Applicable Material | Ferrous and Non-Ferrous Materials |
| Overall Length (OAL) | 2-1/2″ | Tool Type | End Mill |
| Cutting Edge Material | Solid Carbide | Decimal Equivalent | 0.0781 |
| Coating | Alcrona Pro | Series/List # | QTR3 |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | N/A |
