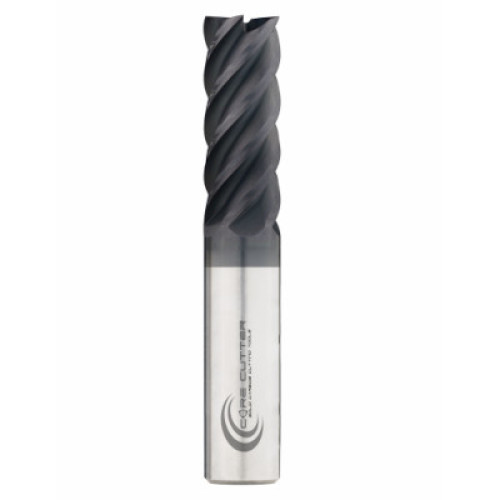

CORE CUTTER Square and Corner Radius End Mills: 3/16" Cutting Diameter, 2-1/2" Overall Length, Series FEM5-R-0187-SQ Latuma Coating, 5 Flutes
| Cutting Diameter (DC) | 3/16″ | Shank Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | End Shape | Square End |
| Depth of Cut Maximum (APMX) | 9/16″ | Applicable Material | Steel; Stainless Steel; Hi-Temp Alloys; Cast Iron |
| Overall Length (OAL) | 2-1/2″ | Tool Type | End Mill |
| Cutting Edge Material | Solid Carbide | Decimal Equivalent | 0.1875 |
| Coating | Latuma | Series/List # | FEM5 |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | N/A |
