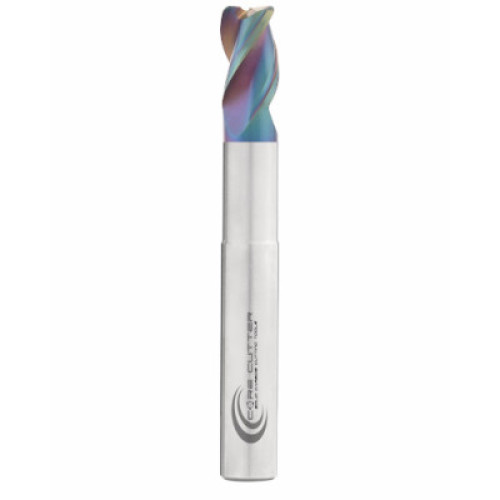

CORE CUTTER Square and Corner Radius End Mills: 5/8" Cutting Diameter, 5" Overall Length, Series AL3-RN-M-0625-R030 Hard Carbon Coating, 3 Flutes
| Cutting Diameter (DC) | 0.625″ | Shank Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.625″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 0.9375″ | Applicable Material | Aluminum; Non-Ferrous |
| Overall Length (OAL) | 5″ | Tool Type | End Mill |
| Cutting Edge Material | Solid Carbide | Decimal Equivalent | 0.625 |
| Coating | Hard Carbon | Series/List # | AL3C-RN |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | 0.03 |
