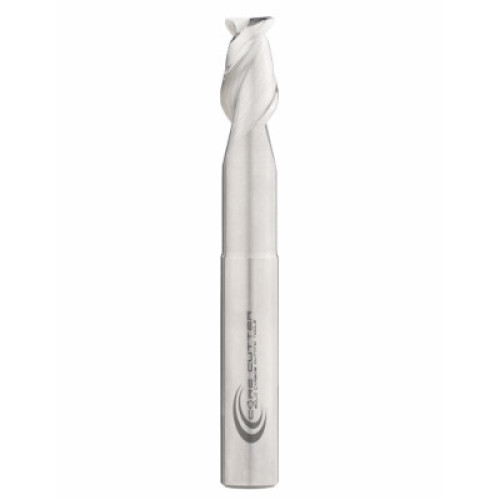

CORE CUTTER Square and Corner Radius End Mills: 3/4" Cutting Diameter, 4" Overall Length, Series AL2-RN-R-0750-R060 Uncoated, 2 Flutes
| Cutting Diameter (DC) | 0.75″ | Shank Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 0.75″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1.125″ | Applicable Material | Aluminum; Non-Ferrous |
| Overall Length (OAL) | 4″ | Tool Type | End Mill |
| Cutting Edge Material | Solid Carbide | Decimal Equivalent | 0.75 |
| Coating | Uncoated | Series/List # | AL2-RN |
| Flute Count (NOF) | 2 | Corner Radius (RE) / Chamfer Width (CHW) | 0.06 |
